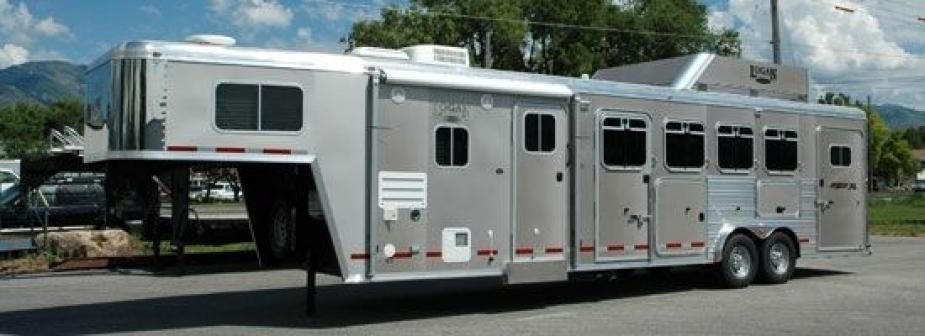

Logan Coach Razor Slant Load Trailer
The Razor by Logan Coach is 7”3” wide and double wall lined in the stall area. The Razor has an aluminum skin and galvanized structure coated with Vortex spray lining to make it stronger and longer lasting. The Razor XL has head side drop-down feed doors, double rear doors, pop-up vents, and tail side Plexiglass.
Search for a Logan Coach Trailer
Razor Standard Features
Structural
- 7′ Tall, 7′ 3″ Wide (7′ Wide Inside)
- 5′ Taper Gooseneck Nose
- Galvanized Structural Tubing In Walls And Floor (No Black Steel)
- One-Piece Aluminum Skin Roof With Aluminum Cove And Roof Bows
- 8 Year Structural Warranty And 2 Year Hitch To Bumper Warranty
Exterior
- Aluminum .100 Interlocking Extruded Sides On Lower Panel Of Stall AreaAnd Aluminum .050 Side Sheets On Upper Panel And Front (Attached With 3M VHB Bonding System)
- Solid Color Side Sheets
- Vortex Rubber Coating Under Gooseneck And On Bumper Pull Tongue
- Stainless Steel Front Wrap (Gooseneck)
- Treadbrite Gravel Guard (Bumper Pull)
- Removable Recessed Jack Handle (Gooseneck)
- Extruded Aluminum Ribbed Running Boards And Fenders
- Rubber Bumper
- E-Z Key System – One Key Fits Every Lock
- Deluxe Trim Package (See Edge)
Wheels and Axles
- Dexter Torsion Axles With Self Adjusting Brakes
- Goodyear Radial Tires With Radial Spare Tire
- Steel Wheels With Center Cap
Electrical
- Dome Lights With Remote Switch In Tack Room And Stall Area
- Sealed Beam Marker And Tail Lights
- Three Porch Lights Controlled By Outside Switch
Tack/Dressing Room
- Single-Wall Construction With Vortex Covered Wall Post
- Removable Carpet On Floor
- Carpet On Top Half Of Angle Wall (Gooseneck Includes Carpet On Drop Wall And Deck)
- Swing-Out Saddle Rack With Gas Assist Shock
- Blanket Bar
- Door Organizer
- Twelve Bridle Hooks
- 35 Gallon Corner Water Tank
Stall Area
- Insulated Triple-Wall Construction 48″ High
- Corrugated Galvanized Kick Walls With Vortex Rubber Coating (48″ High)
- 135″ Diagonal Stall Length (Largest In Doors)
- Extruded Aluminum Self-Draining Floor With Vortex Rubber Coating (Whiz Proof) And Rubber Floor Mats
- Slatted Air Space (Head And Tail Side)
- Aluminum Triple-Wall Double Rear Doors With Air Gap
- Padded Slam Latch Aluminum Divider With Safety Catch
- Butt Strap In Rear Stall
- Hock Deflector Pad And Head Bump Pad
- Interior Tie Ring (One Per Stall)
- Exterior Tie Rings (One On Each Side Per Stall)
- Feed Bag Hooks (One Per Stall)
- 40″ Tailside Wall In Rear Stall (Largest Standard Stall On The Market)
- Interior Roof Cove Cover
Razor XL Features
All the features of the Razor, plus the following additional features:
Stall Area
- Drop Down Window Per Stall With E-Z Reach Handles, Drop Down Grills, And Removable Mesh Face Screens (Head Side)
- Slatted Air Space With Plexiglass (Tail Side)
- Aluminum Triple-Wall Double Rear Door With Windows
- Pop-Up Vent (One Per Stall)
Razor XLT Features
Th Razor XLT includes all the features Of the Razor XL with sliding tailside bus windows in place Of plexiglass.
Search for a Logan Coach Trailer
Optional Features
All optional features of the XTR are available on the Razor. Other options include:
Wheels and Axles
- Wheel Simulators (Bolt-On For 16″ Wheels; Snap-On For 15″ Wheels)
- E-Z Change Tire Jack
Tack/Dressing Room
- Insulated Triple-Wall Construction To Roof With Vortex Rubber Coated Walls
- Window On Shortwall (Gooseneck)
- 35 Gallon Corner Water Tank
- Boot Box
- Cushion Behind Bridle Hooks
- Clothes Rod And/Or Hat Racks
Stall Area
- Insulated Triple-Wall Construction To Roof
- Drop Down Window Per Stall With E-Z Reach Handles, Drop Down Grills, And Removable Mesh Face Screens (Tail Side)
- Sliding Window Per Stall With Window Bars (Tail Side)
- Aluminum Triple-Wall Rear Double Doors With Windows
- Interior Roof Cove Cover
- E-Z Tie Strap (One Per Stall)
- Feed Bags
- Shavings Fork
Electrical
- Extra Flood Lights And/Or Dome Lights
- L.E.D. Marker And Tail Lights
