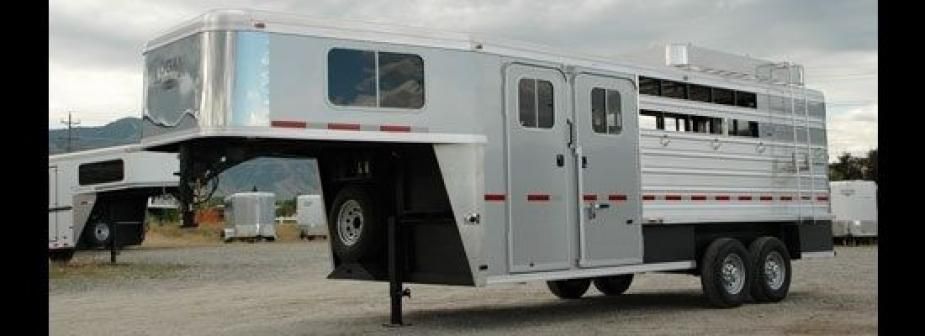

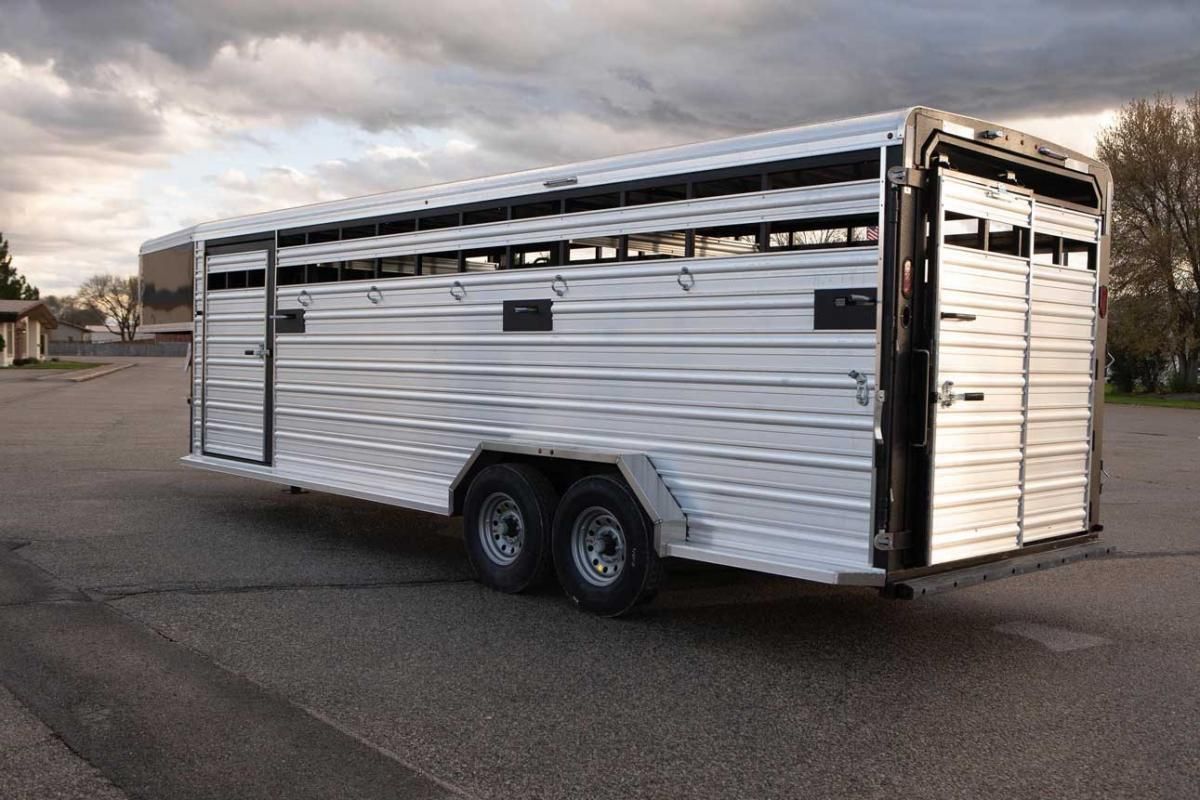

Logan Coach Stockman Stock Trailer

The Stockman is 7’3” wide and double wall lined in the stall area. It is also rust free, easy to tow, re-enforced with a galvanized structure and coated with Vortex spray rubber lining. The Stockman Combo includes a sealed 4’ tack room. We are confident the Stockman stock trailer will hold up to your expectations.

​

Search for a Logan Coach Trailer

Stockman Standard Features

Structural

• 7′ Tall, 7′ 3″ Wide (7′ Wide)
• 5′ Taper Gooseneck Nose
• Galvanized Structural Tubing In Walls And Floor (No Black Steel)
• One-Piece Aluminum Skin Roof With Aluminum Cove And Roof Bows
• 8 Year Structural Warranty And 2 Year Hitch To Bumper Warranty
• 2″x2″ Cross Members On 16″ Centers

Wheels and Axles

• Dexter Torsion Axles With Self Adjusting Brakes
• Goodyear Radial Tires With Radial Spare Tire
• Steel Wheels With Center Cap

Exterior

• Aluminum .100 Interlocking Extruded Sides On Lower Panel Of Stall Area And Aluminum .050 Side Sheets On Upper Panel And Front (Attached With 3M VHB Bonding System)
• Solid Color Side Sheets
• Vortex Rubber Coating Under Gooseneck And On Bumper Pull Tongue
• Stainless Steel Front Wrap (Gooseneck)
• Treadbrite Gravel Guard (Bumper Pull)
• Extruded Aluminum Ribbed Running Boards And Fenders
• Rubber Bumper
• E-Z Key System – One Key Fits Every Lock
• .100 Formed Aluminum Fender

Stall Area

• Corrugated Triple-Wall Construction 48″ High With Vortex Rubber Coating
• Extruded Aluminum Self-Draining Floor With Vortex Rubber Coating (Whiz Proof) And Rubber Floor Mats Or Wood w/o Mats
• Slatted Air Space (Head And Tail Side)
• Combination Rear Gate With Sliding Door And Air Gap With Slam Latch On Cam-Latch
• Solid Center Gate With Slam Latch
• Fold-Down Calf Gate (Gooseneck)
• Escape Door (Passenger Side)
• Rubber Cleated Floor At Rear 4′ w/ Wood Floor Option

Electrical

• Dome Lights Without Remote Switch In Stall Area
• Sealed Beam Marker And Tail Lights

Stockman Combo Features

All the Features of the STOCKMAN and the following:

Tack/Dressing Room

• Single-Wall Construction With Vortex Covered Wall Tubes
• Removable Carpet On Floor
• Swing-Out Saddle Rack With Gas Assist Shock
• Blanket Bar
• Door Organizer
• Twelve Bridle Hooks
• Carpet On Top Half Of Angle Wall (GN Includes Carpet On Drop Wall & Deck)

Stall Area

• Interior Tie Rings: Two For 13′; Three For 16′ And 18′; Four For 20′; Five For 24′
• Exterior Tie Rings: Two Each Side For 13′; Three Each Side For 16′ And 18′; Four Each Side For 20′; Five Each Side For 24′

Electrical

• Dome Lights With Remote Switch In Tack Room

Optional Features

Structural/Exterior

• Slant Load Option
• Round Extruded Fenders

Wheels and Axles

• Axle And/Or Tire Upgrades
• Wheel Simulators (Bolt-On For 16″ Wheels; Snap-On For 15″ Wheels)
• E-Z Change Tire Jack

Electrical

• Extra Flood Lights And/Or Dome Lights
• L.E.D. Marker Lights And/Or Dual L.E.D. Tail Lights

Back/Dressing Room

• Insulated Triple-Wall Construction To Roof With Vortex Rubber Coated Walls
• Boot Box
• Cushion Behind Bridle Hooks
• Hat Racks

Stall Area

• Insulated Triple-Wall Construction To Roof With Vortex Rubber Coated Walls
• Plexiglass In Single Air Space (Head And Tail Side)
• Interior Roof Cove
• Swing-Out Access Door In Gooseneck
• Solid Swing Rear Gate Without Slider
• Interior Tie Rings
• Kick Wall Padding
• Shavings Fork
• Slant Center Gate
• Slant Wall Between Tack Room And Stall Area
• Logan Style Center Gate Slam-Latch
