Walkthrough of 2025 Winnebago Revel 44E

About This Video

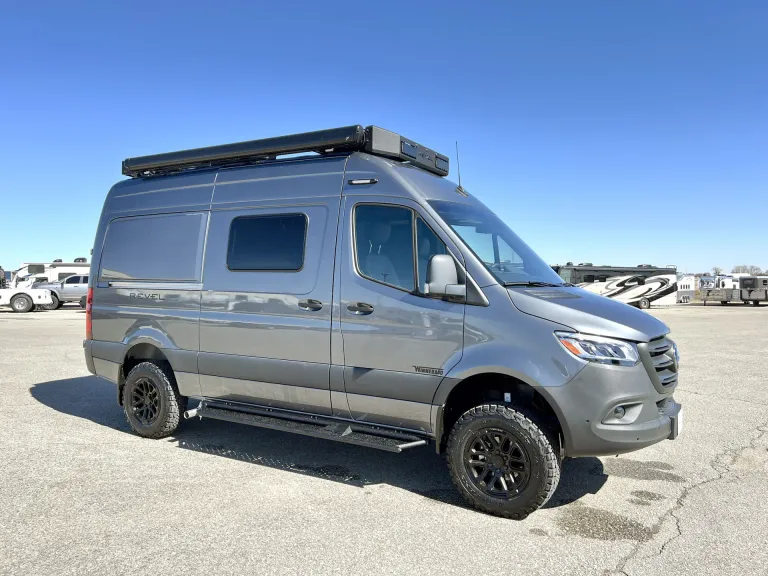

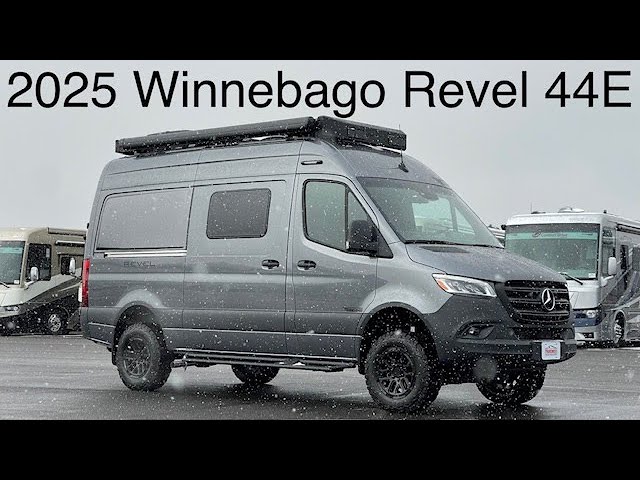

This walkthrough tours the 2025 Winnebago Revel 44E, a Class B van built on the Mercedes-Benz all-wheel-drive Sprinter chassis. It covers the dual lithium-ion power system and solar setup, exterior and off-road equipment, rear cargo and utility areas, tank capacities, engine bay, cockpit and dinette seating, the drop-down bed area, the wet bath, and interior storage.

What You'll See in This Video

Power System and Off-Grid Capability

The walkthrough opens with the Revel's electrical system, which uses dual lithium-ion batteries rated at 16,800 watt-hours and is described as providing up to seven days of off-grid power. A dual alternator lets the air conditioner run while the engine idles, and the batteries are said to reach full charge within about two hours of driving. The roof carries two 210-watt solar panels, and exterior solar ports allow additional portable panels to be connected, for a stated total capacity of 1,600 watts. The video also notes that the 2025 model has an updated all-wheel-drive chassis and redesigned interior and exterior.

Exterior Features and Off-Road Equipment

The exterior tour starts with the all-terrain tires and upgraded wheels, followed by a heavy-duty entry step with a Revel imprint. Above the side door is a Carefree awning with LED lighting and a wind sensor. The van also has a custom roof rack and a dual light bar at the front, which carries a Revel logo matching the running boards. At the rear, a heavy-duty ladder gives access to the roof, where a camera and sensors are mounted on the roof rack.

Rear Cargo Area and Utility Connections

With the rear doors open, the bed keeps the same basic layout as before but now uses more memory foam. According to the video, Winnebago made this change because many owners were replacing the factory mattress with aftermarket beds. A storage compartment on one side sits where the lithium-ion batteries were located on earlier models, and the batteries are now enclosed and out of sight. This area also has a power reset button for reactivating the batteries after they shut down to protect themselves during storage, an exterior solar port, and tie-downs for the smart floor system.

Rear Shower and Water Station

The rear compartment has an exterior shower with hot and cold water. The same area contains the connections for sanitizing and winterizing the system, along with the water pump and water inlet. Storage sits above this station, and a small zippered pack is mounted here that can hold first aid supplies. The rear windows have thick, removable insulated covers and separate bug screens, which the video presents as useful in winter.

Driver-Side Exterior, Tanks, and Fuel

On the driver's side, the walkthrough points out the 30-amp shore power cord and the access door for the cassette toilet. The toilet has a 5-gallon cassette on wheels, which the video says is the same design used in earlier models. Tank sizes are new for this year: a 35-gallon fresh water tank and a 20-gallon gray tank, with the gray tank dump on this side of the van. A matching running board and the 25-gallon diesel fuel fill are also shown.

Cockpit Seating

The cab seats are manually adjustable, with electric lumbar support. A view into the cockpit shows the wood accents used in the 2025 interior, which give the cab a cabin-like look. The video moves from here to the engine bay before covering the cockpit in more detail.

Chassis and Engine Bay

Under the hood, the video confirms the Mercedes-Benz all-wheel-drive chassis with a 9-speed automatic transmission and 211 horsepower. It also points out the dual alternator discussed earlier and the dual light bar mounted above. The oil and windshield washer fluid reservoirs are within easy reach for routine checks.

Dinette, Table, and Passenger Seating

Inside, the walkthrough highlights the wood accents and an upgraded table that closes with a magnetic latch and sits flush when stowed. The redesigned rear passenger seats have two three-point seat belts. The seats can be unlatched and separated to give each passenger more room, and the video says they can seat two adults comfortably. The seats also slide forward and back.

Interior Window Covers and Finishes

The interior windows have thick, insulated covers that roll up and tuck away when not in use. The windows can be left open with bug screens in place in any season. Revel-branded stitching appears on the interior upholstery.

Bed and Rear Sleeping Area

The bed is the same size as on earlier models but has a more comfortable mattress and a more open feel. A zip-up screen at the entry to the rear area closes off the sleeping space for privacy and blocks outside light. When the bed is raised, a built-in bench underneath creates a seating nook for reading or relaxing. The video notes that some owners have built similar benches as aftermarket additions, and the cushions can be rearranged for more padding.

Bedroom Area Storage and Amenities

The window in the rear area has a full insulated cover that attaches with Velcro around the edges and can be removed. Above the bed area are bungee-style storage, charging ports, and lighting. The video presents the zip-up enclosure as useful for blocking sunlight while sleeping.

Updated Cabinet Latches

The 2025 model uses new twist-style latches throughout the interior. Turning a latch closes the door with a tighter seal, and the latches are described as easier to open. The video says the previous latches could loosen over time, and the new hardware is more heavy-duty.

Wet Bath

The wet bath has cubbies, a shower curtain, and the shower fixtures. Winnebago includes several items here, including hoses, a 30-amp shore power cord, a bamboo shelf, a towel rack, and a mirror. The bathroom door is split into two sections, so each side can be closed off independently. The video presents this as less awkward than a single door because the space can be opened partway in either direction.

Interior Cabinet Storage

The walkthrough ends by opening a storage cabinet that uses the same twist latch as the rest of the interior. The cabinet is fully carpeted inside. The video explains that this matters because cabinets are a common source of rattles on the road.

Editorial Review Notes

The YouTube video could not be accessed directly, and no video ID or timed transcript was provided. As a result, none of the section start times could be verified, and timestamp links have been left out instead of estimated. Each heading above needs a verified start time and a linked URL in the required format before publication.

The supplied transcript ends partway through a sentence during the interior storage segment. Any later content, including the kitchen, plug-in cooktop, and 12-volt refrigerator mentioned in the video description, is not covered in the sections above and needs review against the full video.

Several transcript details should be confirmed against the audio. The battery brand name was transcribed as "GTOs" and has been left out. The presenter first says "106" and then corrects it to 1,600 watts of total solar capacity, which is much higher than the two 210-watt roof panels; this should be checked. The phrase "death tank" in the engine bay segment is unclear and has been left out. "Summarize and winterize" was corrected to "sanitize and winterize," and "Rebel" was corrected to "Revel." The stock number in the video description (5N40183) also differs from the one in the website URL (5N240183).
